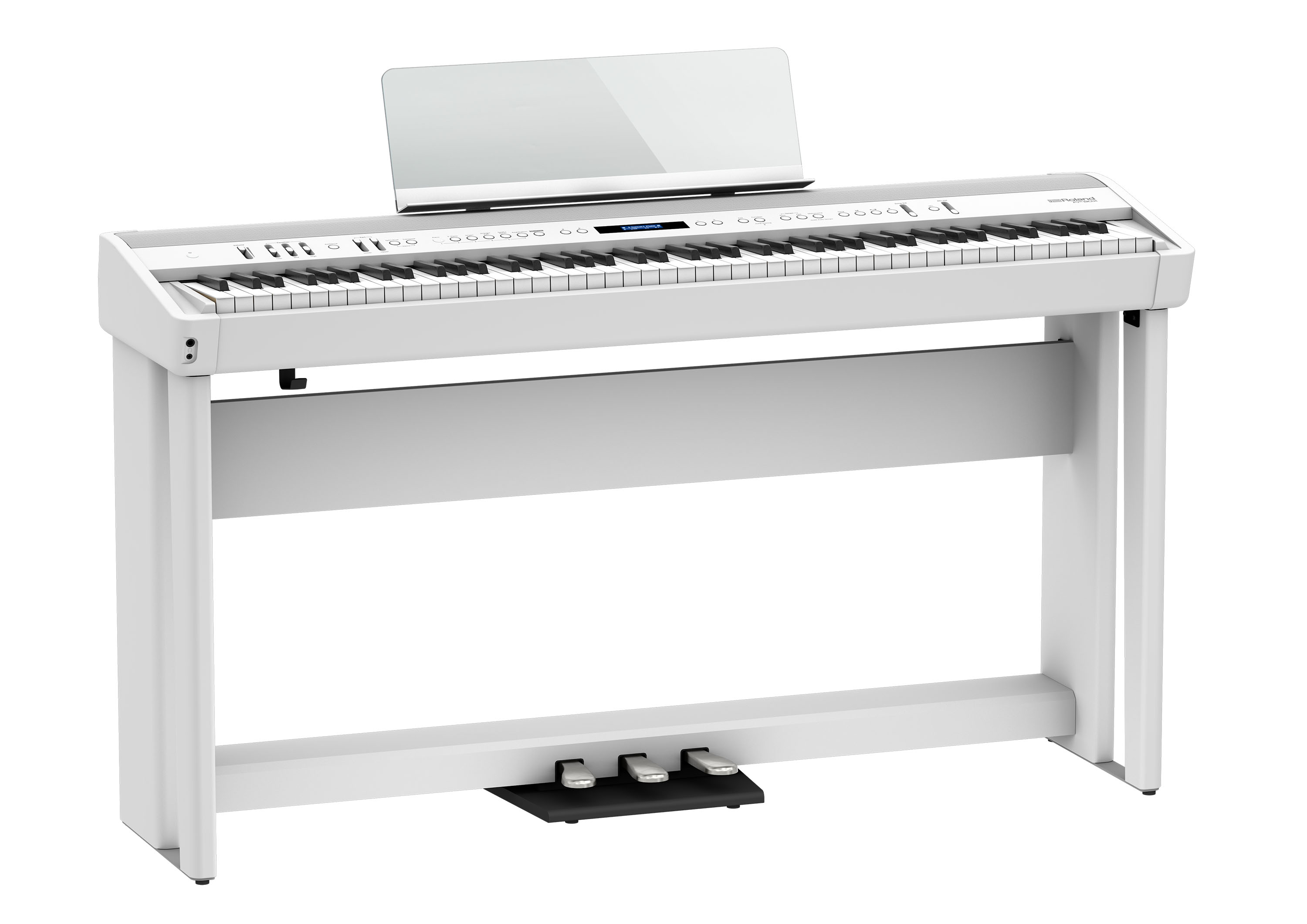

Roland FP-90X: Digital Piano

_______________________________________________

Piano Sound

Piano Sound: PureAcoustic Piano Modeling

_______________________________________________

Max. Polyphony

Piano: Limitless (Solo playing using No.1 to No.8 tones in piano category)

Other: 256

_______________________________________________

Tones

Piano: 20 tones

E.Piano: 18 tones

Organ: 18 tones

Strings/Pad: 27 tones

Synth/Other: 279 tones (including 8 drum sets, 1 SFX set)

_______________________________________________

Ambience

PureAcoustic Ambience

Type: Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral

Depth: 11 types

_______________________________________________

My Stage

12 types

_______________________________________________

Keyboard

PHA-50 Keyboard: Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel (88 keys)

_______________________________________________

Speaker System

Speakers: 8 x 12 cm (3-3/16 x 4-3/4 inches) x 2 (with speaker box)

Dome Tweeters: 2.5 cm (1 inches) x 2

_______________________________________________

Rated Power Output

25 W x 2

5 W x 2

_______________________________________________

Headphones

Headphones Acoustic Projection

_______________________________________________

Bluetooth

Audio: Bluetooth Ver 3.0 (Supports SCMS-T content protection)

MIDI: Bluetooth Ver 4.0

_______________________________________________

Compatible Android / iOS Apps (Roland)

Piano Every Day

Piano Designer

_______________________________________________

Data Playback

Standard MIDI Files (Format 0, 1)

Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps - 320 kbps, requires USB flash drive)

_______________________________________________

Recordable Software

Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)

Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)

_______________________________________________

Internal Songs

34 Songs

_______________________________________________

Tuning, Voicing

Key Touch: 100 types, fixed touch

Hammer Response: 10 types

_______________________________________________

Master Tuning

415.3--466.2 Hz (adjustable in increments of 0.1 Hz)

_______________________________________________

Temperament

10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key

_______________________________________________

Effects

Ambience

Equalizer (3-band digital equalizer)

Only for organ tones:

Rotary Speaker Effect

Only for E.Piano tones:

Modulation Speed

_______________________________________________

Mic Effects

Compressor

Doubling

Echo

_______________________________________________

Piano Designer

Lid

Key Off Noise

Hammer Noise

Duplex Scale

Full Scale String Resonance

Key Off Resonance

Cabinet Resonance

Soundboard Type

Damper Noise

Soft Pedal Type

Single Note Tuning

Single Note Volume

Single Note Character

_______________________________________________

Convenient Functions

Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)

Auto Tempo

Transpose (Keyboard/Song: in semitones)

Registration (45 registrations, capable of pedal shift)

Registration Set

Dual

Split (split point adjustable)

Twin Piano

Tone Demo

Auto Off

_______________________________________________

Display

Graphic LCD 132 x 32 dots

_______________________________________________

Control

Volume slider

Equalizer sliders (Low/Mid/High)

Part sliders (Lower/Upper)

Song Vol. slider

Mic Vol. slider

Speaker switch

Mic Gain knob

_______________________________________________

Connectors

DC In jack

Pedal (Damper/R, Sostenuto/C *1, Soft/L *1) jacks: TRS 1/4-inch phone type

Input Stereo jack: Stereo miniature phone type

Output (L/Mono, R) jacks: 1/4-inch phone type

Mic Input jack: 1/4-inch phone type

USB Computer port: USB B type

USB Memory port: USB A type

Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

MIDI (Out, In) connectors

*1: Assignable

_______________________________________________

Power Supply

AC adaptor

_______________________________________________

Power Consumption

40W (When using the included AC adaptor)

*Approximate power consumption when playing the piano at medium volume: 14W

Power consumption when sound has not been played after power-on: 12W

_______________________________________________

Dimensions

Detached music rest:

1,340 (W) x 390 (D) x 136 (H) mm

52-13/16 (W) x 15-3/8 (D) x 5-3/8 (H) inches

FP-90X with KSC-90 and music rest:

1,340 (W) x 418 (D) x 932 (H) mm

52-13/16 (W) x 16-1/2 (D) x 36-3/4 (H) inches

_______________________________________________

Weight

23.6 kg, 52 lbs 1 oz (FP-90X with music rest)

37.8 kg, 83 lbs 6 oz (FP-90X with KSC-90, KPD-90, and music rest)

_______________________________________________

Accessories

Owner's Manual

Leaflet "USING THE UNIT SAFELY"

AC adaptor

Power cord

Music rest

Damper pedal (DP-10, capable of continuous detection)

_______________________________________________

Option (sold separately)

Dedicated stand: KSC-90

Dedicated pedal board: KPD-90

Keyboard stand: KS-G8B, KS-10Z, KS-12, KS-20X

Pedal unit: RPU-3

Damper pedal: DP series

Pedal switch: DP-2 (*1)

Expression pedal: EV-5

Carrying Bag: CB-88RL

Headphones

*1 Cannot use for Damper/R.

‍
